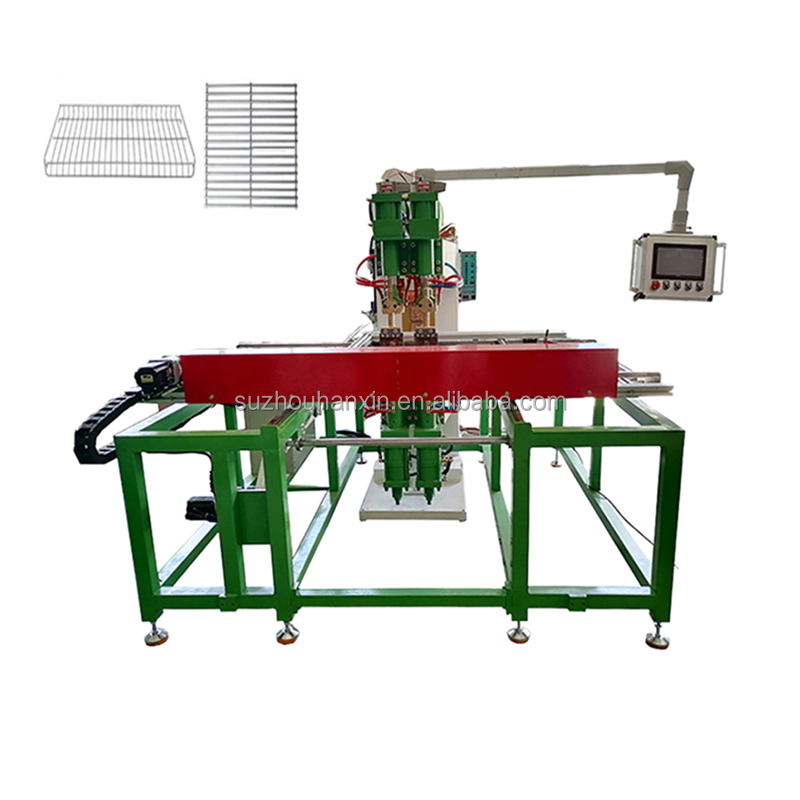

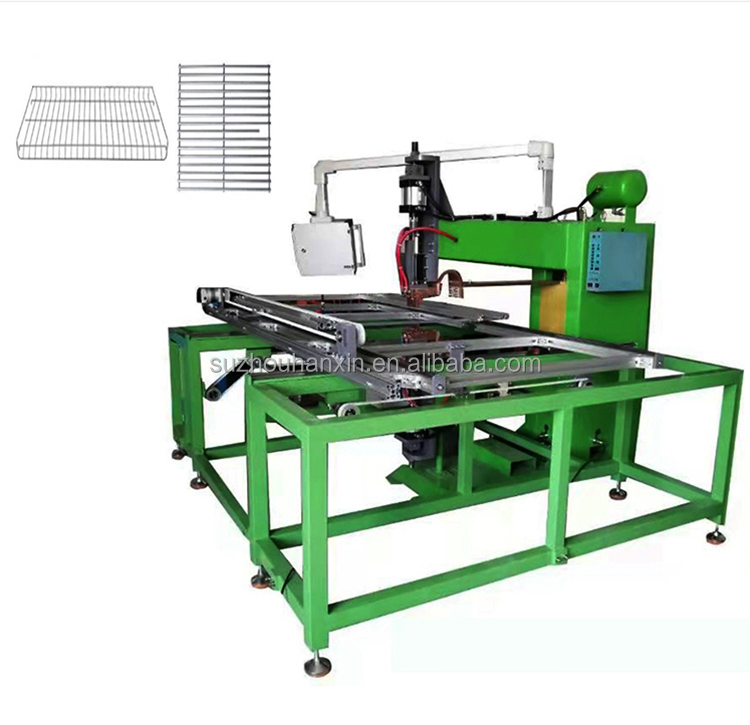

Production Processxy axis wire mesh spot welding machine
High quality basket shelves xy axis wire mesh spot welding machine is designed to weld small wire mesh which can be matched with different welding fixtures. The operator only needs to input the parameters like the coordinate data and welding current, then the machine will conduct automatic welding after start. Workers only need to put and take the work piece manually. This machine is of simple structure which will make the assembly very easy. It also can be matched with different welding equipment. The servo motor will drive the X and Y axis to run within the preset PLC programming. It can max store 5000 welding spots. This machine is suitable for batch welding of wire mesh. The AC pulsed power supply is of low cost and low consumption which can help reduce the impact to the power grid and ensure the stability of the welding spot

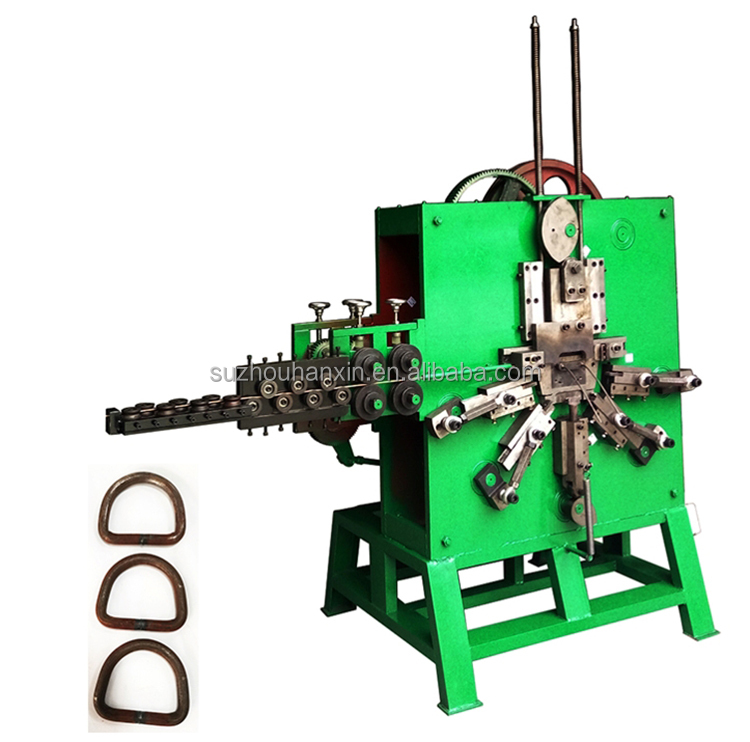

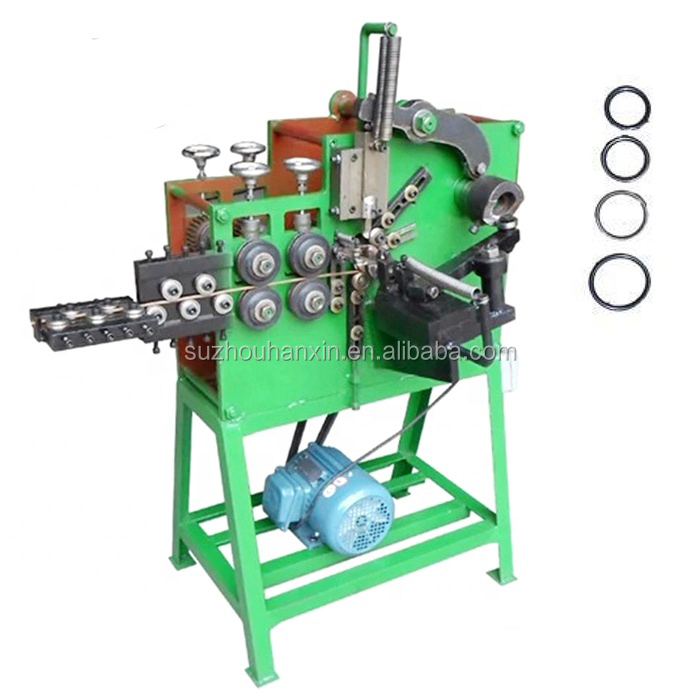

Product name Hydraulic type ring making machine
Model

Voltage

Motor Power

Suitable Wire Thickness

Inner Ring Diameter

Production Speed

(KW) (mm) (mm) (m/min)
DQY-5

380V

3 Phase

50/60HZ

1.5 2-5 40-600 20
DQY-6 1.5 1.5-6 40-600 20
DQY-8 2.2 2-8 45-600 25
DQY-10 3.7 3-10 50-600 30
